Sea-Doo GTR/GTX/RXP/RXT 155/215/255/360/300 WSM carbon seal kit - 003-110-02K

Sea-Doo Drive Shaft Repair Kit

Replaces OEM#

• 271001577
• 271001434
• 293300107
• 271001420

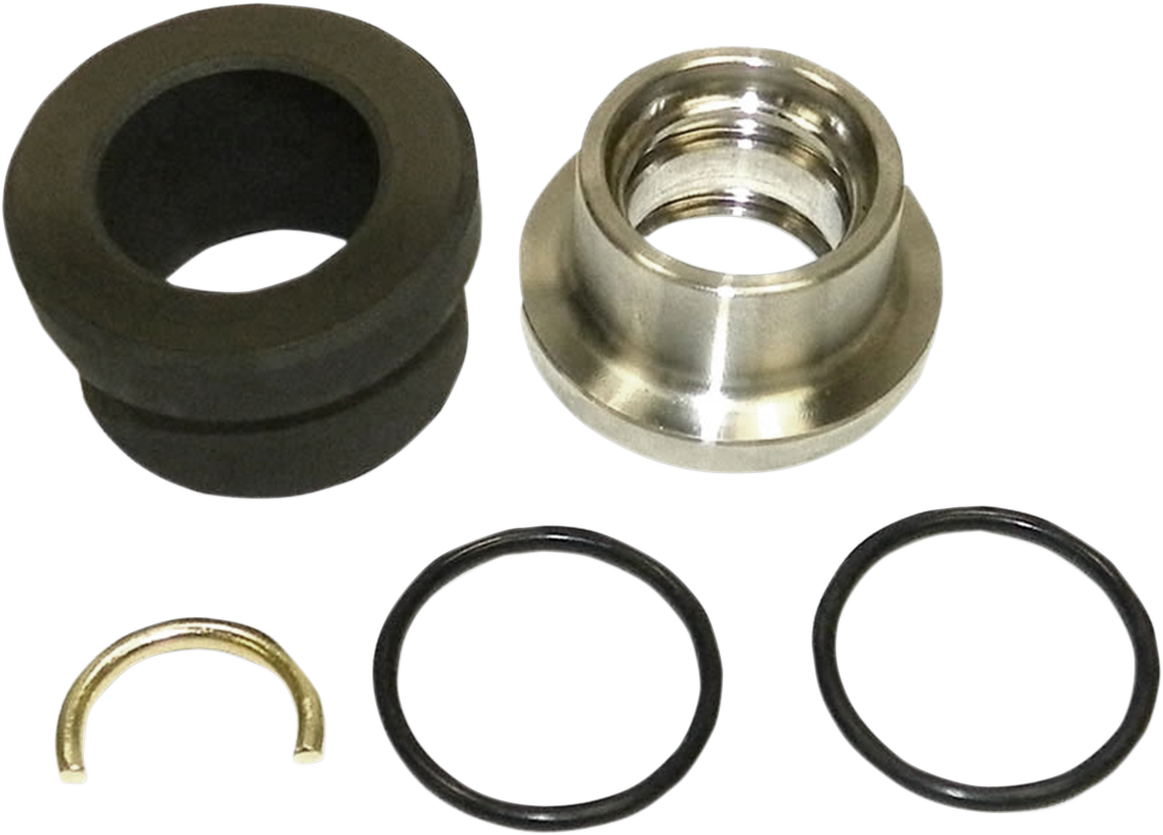

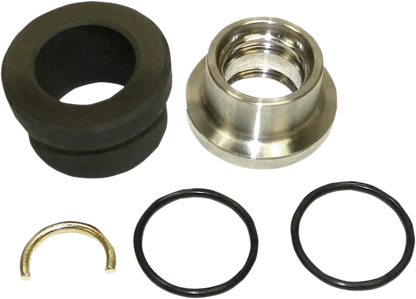

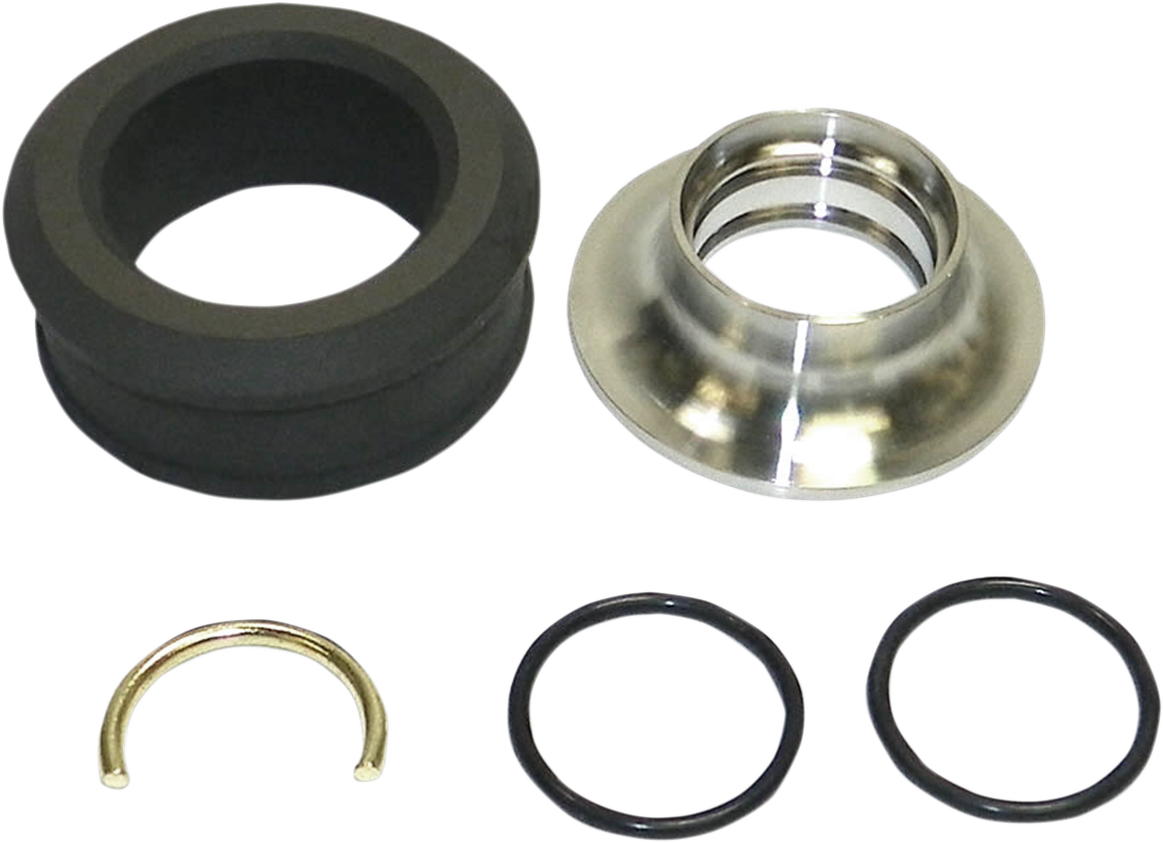

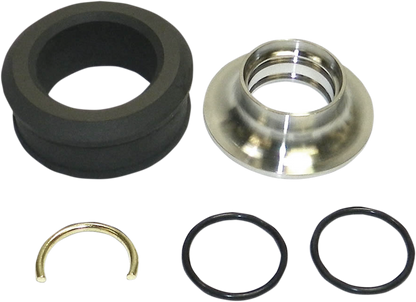

Kit includes:

• Drive Shaft C Clip, WSM 003-119-02, OEM# 271001577
• Support Ring, WSM 003-118-02, OEM# 271001434
• O-Ring for, WSM 003-638-02, OEM# 293300107
• Carbone Ring, WMS 003-110-02, OEM# 271001420

Applications:

• Sea-Doo GTR 215 1503 2012-2015
• Sea-Doo GTX 155 1503 2010-2013,2015-2016
• Sea-Doo GTX 155 STD 1503 2014
• Sea-Doo GTX 215 1503 2008-2009,2011-2013
• Sea-Doo GTX IS 215 1503 2010-2011
• Sea-Doo GTX LTD 1503 2006
• Sea-Doo GTX LTD 215 1503 2008,2014-2016
• Sea-Doo GTX LTD 230 1503 2017
• Sea-Doo GTX LTD 300 1630 2016-2017
• Sea-Doo GTX LTD IS 255 1503 2009
• Sea-Doo GTX LTD IS 260 1503 2010-2016
• Sea-Doo GTX LTD SCIC 1503 2007
• Sea-Doo GTX S 155 1503 2012-2013,2015
• Sea-Doo GTX SCIC 1503 2007
• Sea-Doo GTX STD 155 1503 2017
• Sea-Doo GTXS LTD 260 1503 2017
• Sea-Doo GTXS STD 155 1503 2017
• Sea-Doo RXP 1503 2005-2006
• Sea-Doo RXP 155 S/C 1503 2008
• Sea-Doo RXP 215 1503 2009
• Sea-Doo RXP BVIC 1503 2007
• Sea-Doo RXP S/C 1503 2004
• Sea-Doo RXP X 255 1503 2008-2011
• Sea-Doo RXP X 260 1503 2012-2015
• Sea-Doo RXP X 300 1630 2016-2017
• Sea-Doo RXT 1503 2006
• Sea-Doo RXT 215 1503 2009-2010
• Sea-Doo RXT 260 1503 2011-2016
• Sea-Doo RXT IS 255 1503 2009
• Sea-Doo RXT IS 260 1503 2010-2012
• Sea-Doo RXT SCIC 1503 2007
• Sea-Doo RXT STD 260 1503 2017
• Sea-Doo RXT STDRS 260 1503 2017
• Sea-Doo RXT X 255 1503 2008-2009
• Sea-Doo RXT X 260 1503 2010-2015
• Sea-Doo RXT X AS 260 1503 2011-2016
• Sea-Doo Wake 155 1503 2016
• Sea-Doo Wake 215 1503 2008
• Sea-Doo Wake Pro 215 1503 2009-2016
• Sea-Doo Wake Pro 230 1503 2017

Details:

• Carbon Ring Sizing (WSM Part# 003-110-02) OD:59.60mm (Where Bellow Clamps) OD:64.50 Largest Area ID:40.00mm Height:26.00mm Support Ring Sizing: (WSM Part# 003-118-02) OD:59.15mm ID:29mm Height:18.55mm
