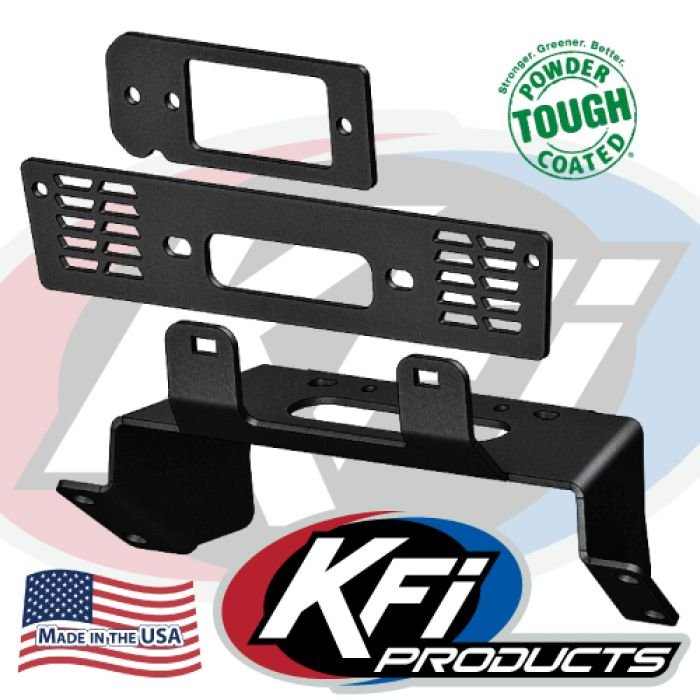

KFI Products Polaris Ranger 400/500/570/700/800 WINCH MOUNT - 101560

Mount designed to work with the following winches:

KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2 / U45w-R2 / SE45w-R2

KFI: AM-25 / AM-35 / AS-25 / AS-35

KFI: AS-50x / AS-50wx

WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S

May require adding washers to shim up to fit due to size

WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s

WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40

WARN: Vantage 2000-3000lbs / ProVantage 2500-3500lbs

WARN: Vantage 4000lbs / ProVantage 4500lbs

RAMSEY: ATV2500 / ATV3000

SUPERWINCH:Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV

MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500

MASTER LOCK: 1500lbs #2955AT

Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.

CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500, 3500

BADLAND: 2-Hole Winches (Click Here for Details)

BADLAND: Standard Winches (Click Here for Details)

BADLAND: WIDE Winches (Click Here for Details)

BADLAND: Apex 5500 (Short and Long Drum)

May require adding washers to shim up to fit due to size

CHAMPION: 2-Hole Winches (Click Here for Details)

CHAMPION: ATV 4-Hole Winches (Click Here for Details)

CHAMPION: UTV 4-Hole Winches (Click Here for Details)

CHAMPION: WIDE Winches (Click Here for Details)

KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C

KEEPER CORP. TRAKKER: KT2000

Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.

SMITTYBILT: XRC 2.0

Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.

Listed models come with incorrect ATV roller fairleads.

SMITTYBILT: XRC 3.0 / XRC 4.0

XGEAR: X3000 / X4000

4-Hole Standard (3.00" x 4.875" bolt pattern)

VENOM: 4000 / 4500 / 5000 (Hardcore Series)

All with 3.00" x 6.600" bolt pattern mount-up

VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)

4-Hole Standard 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern

Traveller: 1078311

Traveller: 1078088 / 1078302

Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF

Possibly many others with the below standard mounting patterns, call to confirm.

4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)

2-Hole (3.10" with rollers that are 4.875" bolt pattern)

QUADBOSS: RP25 / RP35

Possibly many others with the below standard mounting patterns, call to confirm.

4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)

Specifications:

100% MADE IN USA

Constructed of 3/16" Grade 50 steel

Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.

Powder coated black for supreme durability

Very easy to install

Complete installation instructions included

Mounts winch tucked back behind front bumper

Satisfaction guaranteed

Roller fairlead and winch not included

KFI Application Chart

Polaris Mid-Size Ranger * Year

Ranger 400 (Mid-Size) '10-14

Ranger 500 (Mid-Size) '11-13

Ranger 500 (Mid-Size) '17-22

Ranger 570 (Mid-Size) '14-21

Ranger 800 (Mid-Size) '13-14

Ranger Crew 500 (Mid-Size) '11-13

Ranger Crew 570 (Mid-Size) '14-21

Ranger EXT (Mid-Size) '15-16

Ranger EV (Mid-Size) '10-22

Polaris Full-Size Ranger * Year

Ranger 500 '09-10

Ranger 570 (800 Body Style / Round Tube Frame) '16-25

Ranger 700 2009

Ranger 800 '10-14

Ranger 800 6x6 '10-16

Ranger Crew 570 ** (800 Body Style / Round Tube Frame) '17-25

Ranger Crew 800 '10-13

Ranger Crew 800 ** 2014

Ranger Crew Diesel ** (900) '12-14

Ranger Crew Diesel (900) '11-14

Ranger XP 700 2009

Ranger XP 800 2012

= Requires the purchase of #UTV-WEK (wire extension kit) Due to location of battery on Ranger.
