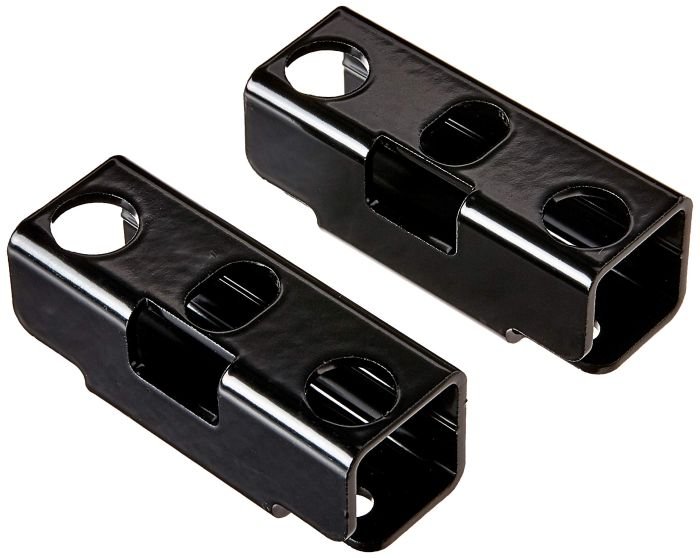

KFI Products WINCH MOUNT FAIRLEAD BRACKET - ARCTIC CAT PROWLER - 101340

Applications:

500 Prowler HDX '16-17

550 Prowler 2015

700 Prowler '15-17

700 Prowler HDX '16-17

700 Prowler HDX Crew 2017

1000 Prowler '15-16

If you have a 2-Hole winch you will need to purchase additional Part #100480

Mount Designed to work with the following Winches:

KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2

KFI: AM-25 / AM-35 / AS-25 / AS-35

KFI: AS-50x / AS-50wx

WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S

WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s

WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30

WARN: RT40 / XT40

WARN: Vantage 2000-3000lbs / ProVantage 2500-3500lbs

WARN: Vantage 4000lbs / ProVantage 4500lbs (Will use WIDE fairlead that comes with your winch.)

RAMSEY: ATV2500 / ATV3000

SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV

MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500

CYCLE COUNTRY: Work Power 2500 / PowerMax 2500 and 3500

BADLAND: 2-Hole Winches (Click Here for Details)

Requires additional part #100480

BADLAND: Standard Winches (Click Here for Details)

BADLAND: WIDE Winches (Click Here for Details)

CHAMPION: 2-Hole Winches (Click Here for Details)

Requires additional part #100480

CHAMPION: ATV 4-Hole Winches (Click Here for Details)

CHAMPION: UTV 4-Hole Winches (Click Here for Details)

CHAMPION: WIDE Winches (Click Here for Details)

KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C

KEEPER CORP. TRAKKER: KT2000

Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.

Requires additional part #100480

SMITTYBILT: XRC 2.0

Requires additional part #100480

SMITTYBILT: XRC 3.0 / XRC 4.0

XGEAR: X3000 / X4000

VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)

All with 3.00" x 4.875" Bolt Pattern mount-up

All with 3.00" x 6.600" Bolt Pattern mount-up

Traveller: 1078311

Traveller: 1078088 / 1078302

Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF

Possibly many others with the below standard mounting patterns, call to confirm.

4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)

4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)

2-Hole (3.10" with rollers that are 4.875" bolt pattern)

Requires additional part #100480

QUADBOSS: RP25 / RP35

Specifications:

100% MADE IN USA

Constructed of 1/4" steel

Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.

Powder coated black for supreme durability

Very easy to install

Complete installation instructions included

Satisfaction guaranteed

Roller fairlead and winch not included.
