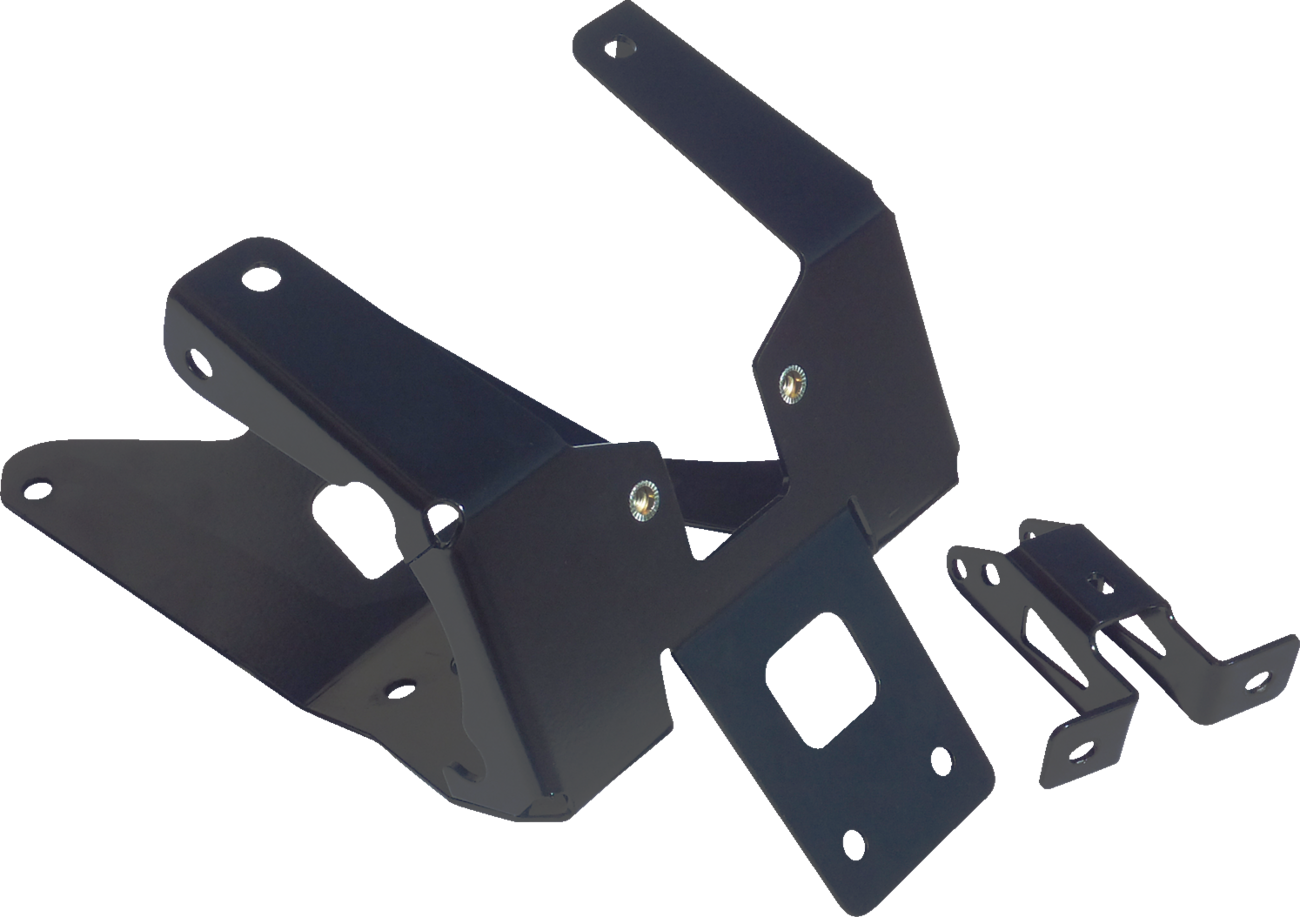

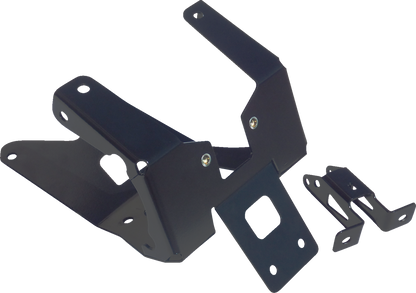

KFI Products Winch Mount Can-Am Renegade 500/570/650/800/850/1000 - 100920

KFI Products Winch Mount Can-Am Renegade 500/570/650/800/850/1000 - 100920

$48.36 USD
$54.95 USD $48.36 USD
Sale Sold out
Shipping calculated at checkout.

FHRT_100920

KFI Winch Mount Application Chart

Can-Am ATV * Year
Renegade 500 (All) '13-15
Renegade 570 (Base) '16-22
Renegade 650  (Base) '18-19
Renegade 800/R (Base*XXC) '12-15
Renegade 850 (Base*XXC) '16-22
Renegade 1000/R (Base*XXC) '12-22

Mount designed to work with the following winches:

  • KFI: ST17 / A2500-R2 / A3000 / SE25 / SE35
  • KFI: AM-25 / AM-35 / AS-25 / AS-35
  • KFI: AS-50x (Requires purchase of ATV-MR)
  • WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
  • WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
  • WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN: Vantage 2000-3000lbs
  • WARN: Provantage 2500-3500lbs
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
    • Provantage larger bottom roller causes fitment issues.
  • RAMSEY: ATV2500 / ATV3000
  • SUPERWINCH: LT2500 / LT3000 / LT4000ATV / LT4000 (SR)
  • MILE MARKER: PE2.5 / VMX2.5 / PE2500
  • CYCLE COUNTRY: Work Power 2500
  • BADLAND: Standard Winches
  • CHAMPION: Standard Winches
  • KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C
  • SMITTYBILT: XRC 3.0 / XRC 4.0
  • XGEAR: X3000 / X4000
    • 4-Hole Standard (3.00" x 4.875" bolt pattern)
  • VENOM: 2000 / 2500 / 3000 (Standard ONLY)
  • Possibly many others with the below standard mounting patterns, call to confirm.
    • 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • QUADBOSS: RP25 / RP35

Specifications:

  • 100% MADE IN USA.
  • Constructed of 11GA GR-50 steel.
  • Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
  • Powder coated black for supreme durability.
  • Complete installation instructions included.
  • All mounting hardware included.
  • Satisfaction guaranteed.
  • Roller fairlead and winch not included.
