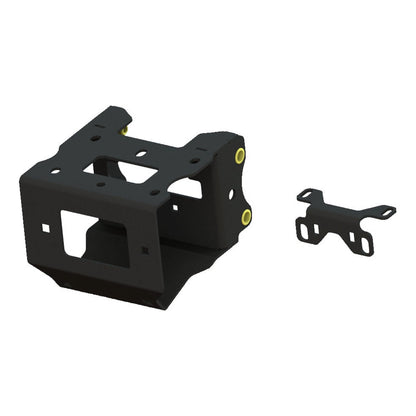

KFI Products Polaris Current Sportsman and Scrambler Winch Mount - 101840

Brand New "KFI" Winch Mount for the Following Polaris ATV's:

Polaris ATV * Year NOTES: Contactor

Position

Scrambler 850 (XP) '13-26 Position #2

Scrambler 1000 (XP) (48") '14-25 Position #2

Sportsman ETX (Hawkeye) 2015 Position #1

Sportsman 400 '11-14 Position #5

Sportsman 450

Model: (H.O. / H.O. EPS / Utility Edition / H.O. EPS LE) '16-20 Position #1

Sportsman 450

Model: (H.O. / H.O. EPS / Utility Edition / H.O. EPS LE) '21-26 Position #2

Sportsman 450 Utility HD LE '21-26 (!!! SEE NOTE X Below) Position #2

Sportsman 500 '11-13 Position #5

Sportsman 500 Touring '11-13 Position #5

Sportsman 550(XP) 2009 Position #3

Sportsman 550(XP) '10-14 Position #4

Sportsman 550 Touring 2010 Position #3

Sportsman 550 Touring '11-14 Position #4

Sportsman 550 X2 2010 Position #3

Sportsman 550 X2 '11-14 Position #4

Sportsman 570 (BaseSPEFI) '14-20 Position #1

Sportsman 570 (BaseSPEFI) '21-26 Position #2

Sportsman 570 EPS (BaseUtility) '14-20 Position #1

Sportsman 570 EPS '21-26 (!!! SEE NOTE X Below) Position #2

Sportsman 570 Premium 2020 Position #1

Sportsman 570 (PremiumTrailUltimate) '21-26 (!!! SEE NOTE X Below) Position #2

Sportsman 570 Utility HD LE '21-26 (!!! SEE NOTE X Below) Position #2

Sportsman 570 Touring '14-24 Position #1

Sportsman 570 Touring '25-26 Position #2

Sportsman 570 X2 '15-21 Position #1

Sportsman 570 X2 '25-26 (!!! SEE NOTE X Below) Position #2

Sportsman 800 '11-14 Position #5

Sportsman 850 (PremiumXPHighlifterUltimate) 2009 Position #3

Sportsman 850 (PremiumXPHighlifterUltimate) '10-16 Position #4

Sportsman 850 (PremiumXPHighlifterUltimate) '17-26 Position #2

Sportsman 850 Touring 2010 Position #3

Sportsman 850 Touring '11-26 Position #4

Sportsman 850 Trail '25-26 (!!! SEE NOTE X Below) Position #2

Sportsman 850 X2 2011 Position #4

Sportsman XP 1000 (48") '15-16 Position #4

Sportsman XP 1000 (48") '17-26 Position #2

Sportsman XP 1000 Touring '15-26 Position #4

Sportsman Big Boss 6x6 '11-15 Position #5

Sportsman Big Boss 6x6 '17-24 Position #1

Sportsman Big Boss 6x6 '25-26 (!!! SEE NOTE X Below) Position #2

Supersedes Winch Mount #101740 and 100740

NOTE X: Bumper Conversion Bracket #101895 will need to be purchased in order to reinstall OEM Polaris Front Bumper (See Below)

Even if the machine does not come factory with the front bumper but you plan on adding the bumper to your current year Polaris Sportsman, the conversion bracket will be required (See Below)

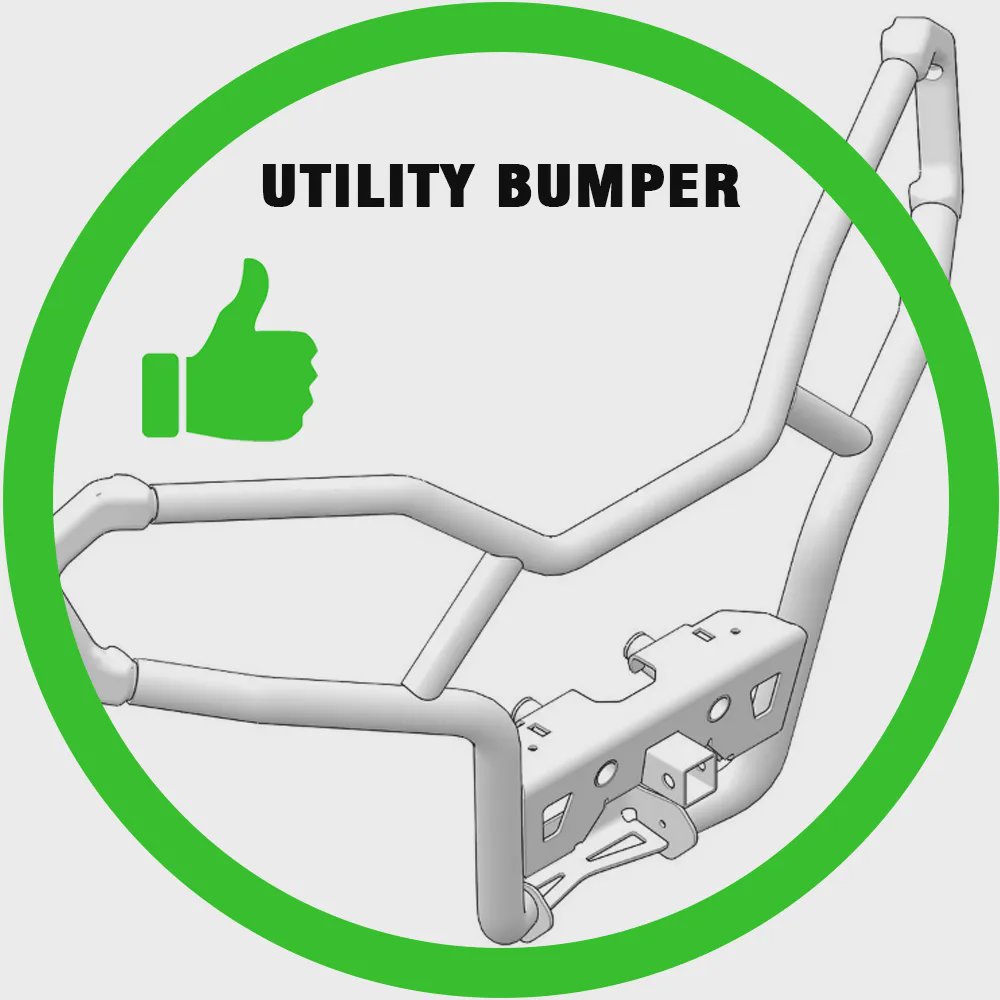

Polaris OEM Bumper Part Numbers

Utility Front Bumper Trail Front Bumper

2638234-458 2638410-458

2639244-458 1026154-458

1028482-458

Mount designed to work with the following winches:

KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35

KFI: AM-25 / AM-35 / AS-25 / AS-35

KFI: AS-50x (requires purchase of ATV-MR)

WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S

WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s

WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30

WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs

RAMSEY: ATV2500 / ATV3000

SUPERWINCH: Terra 2500 (SR) / Terra 3500 (SR) / A3500 / LT2000 / LT2500 / LT3000 / UT3000 / LT4000ATV / LT4000 (SR) (Will NOT work with Terra25 / Terra35 / Terra45)

MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500

MASTER LOCK: 1500lbs #2955AT

Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.

CYCLE COUNTRY: Work Power 1500 and 2500

BADLAND: 2-Hole Winches (Click Here for Details)

BADLAND: Standard Winches (Click Here for Details)

VENOM: 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)

All with 3.00" x 4.875" bolt pattern mount-up.

CHAMPION: 2-Hole Winches (Click Here for Details)

CHAMPION: ATV 4-hole Winches (Click Here for Details)

KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C

KEEPER CORP. TRAKKER: KT2000

Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.

SMITTYBILT: XRC 2.0

Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.

Listed models come with incorrect ATV roller fairleads.

SMITTYBILT: XRC 3.0 / XRC 4.0

XGEAR: X3000 / X4000

4-Hole Standard (3.00" x 4.875" bolt pattern.

Traveller: 1078088 / 1078302

Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF

Possibly many others with the below standard mounting patterns, call to confirm.

4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)

2-Hole (3.10" with rollers that are 4.875" bolt pattern)

QUADBOSS: RP25 / RP35

Specifications:

100% MADE IN USA.

Constructed of 10 GA GR50 steel

Designed to fit between in the OEM location below the radiator

Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.

Powder coated black for supreme durability.

Mounts the same as OEM intended.

Works with all Polaris OEM Brush Guards and Double Tube Bumpers.

Very easy to install.

Complete installation instructions included.

All mounting hardware included.

Will work with Polaris Glacier Plow.

Satisfaction guaranteed.

Roller fairlead and winch not included.
