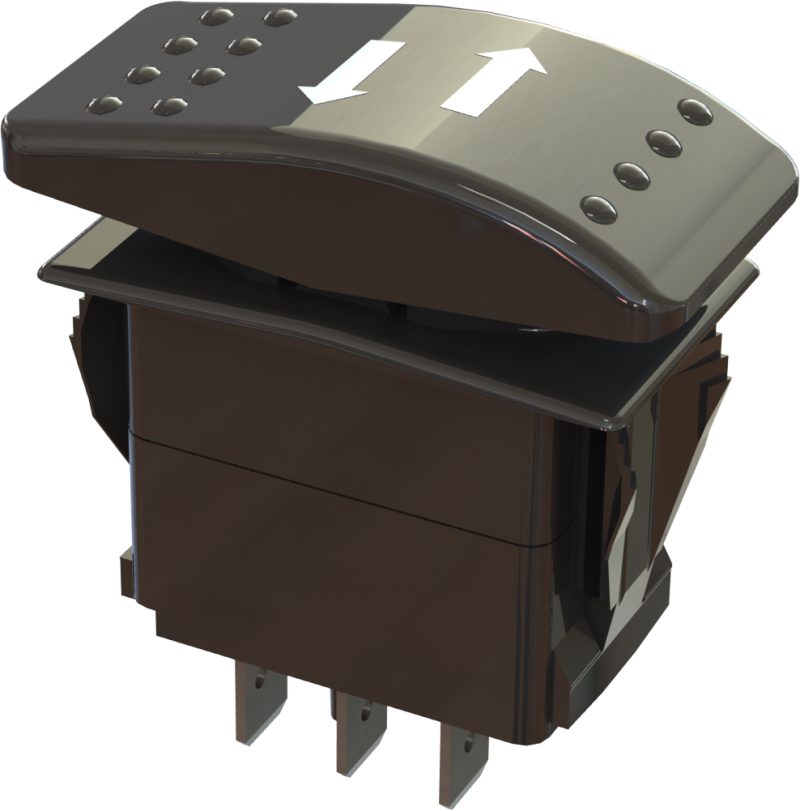

KFI Actuator Switch

Double pole Switch, means two contact points instead of just one for better repeatability operation

• Double pole Switch, means two contact points instead of just one for better repeatability operation
• Requires Mounting hole 0.830 in. x 1.450 in. (standard on most UTV's)
• Works with Panel Thickness ranging from .030 in. to .250 in. thick
• This kit includes the replacement Rocker Switch only
• Max Current Rating: 20A 12VDC and 15A 24VDC
• Requires 105940 to control the actuator
• The switch is not illuminated
• Circuit Type (ON)-OFF-(ON)
• Silver Plated Terminals
