KFI 3000 Lb. Rated ATV Winch Kit Yamaha Honda Polaris Kawasaki

Winch Details:

Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. This 3000lb ATV Series winch features quality cast aluminum and durable steel components, water resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a "KFI 1-Year Limited Warranty". The KFI A3000 winch comes with everything you need other than an ATV model specific winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.

Winch Includes:

Take control of your winch with the included Mini-Rocker Switch. It comes with an adjustable bracket to mount on to your ATV's handlebars. This allows you to control your winch with just the touch of your finger, never having to let go of your handlebars.

Also included is a Handheld 14' Corded Remote for those situations when you need to control your winch from a distance ordis mounted from your machine. This compact high quality remote offers a more reliable control than the other wireless options. Included is a socket plug and play wiring system so that you can store your remote when not in use.

The included Heavy Duty Electric Contactor protects your ATV's electrical system and switches the power distribution of your winch that is controlled from your switches.

Model A3000 ATV Series

Rated Line Pull 3000 lbs.

Motor 12V DC, 1.3 hp Permanent Magnet

Gear Ratio 171:1

Gear/Transmission All-metal Planetary Gear Drive

Brake Dynamic and Mechanical

Clutch (free spooling) All Metal Cam Activated Freespool

Drum Size 1.5" (D) x 3.32" (L)

Cable 3/16" (D) x 45.9' (L)

Fairlead Multi-directional Roller

Control Deluxe Handlebar-Mounted Mini-Rocker Control Switch and a Heavy Duty Corded Remote Switch

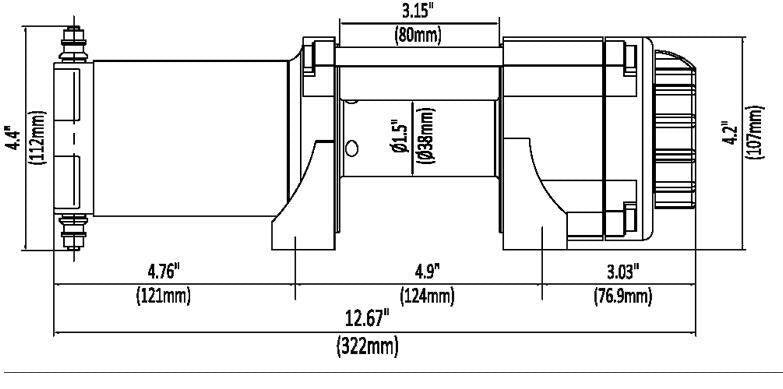

Winch Dimensions 13.39" L x 4.06" D x 4.29" H

Mount Plate Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV)

Mounting Bolt Pattern 3.00" x 4.875" (4-Hole)

Recommended Battery 12 Amp/hour minimum

Warranty Limited 1 Year

Winch Weight 24.8 lbs. (complete kit)

Certification CE Certified
