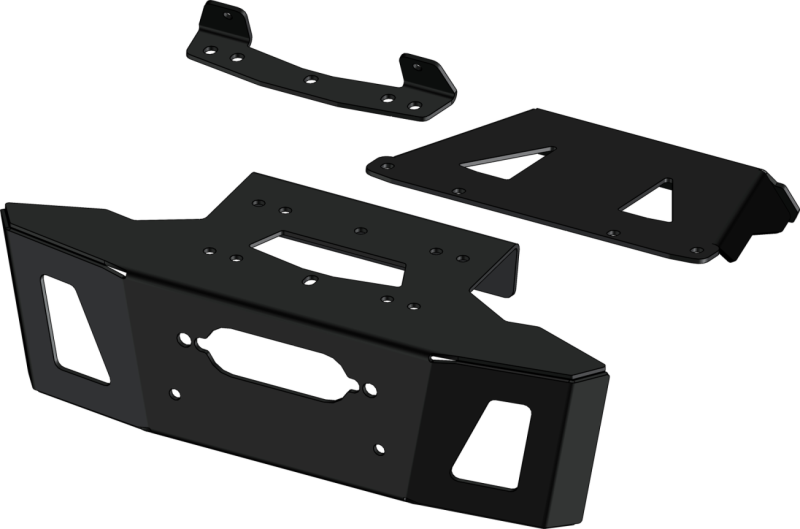

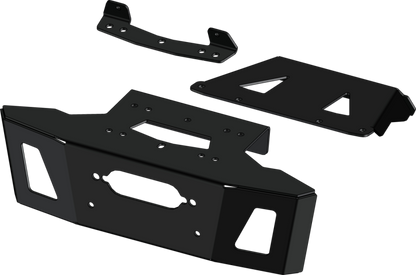

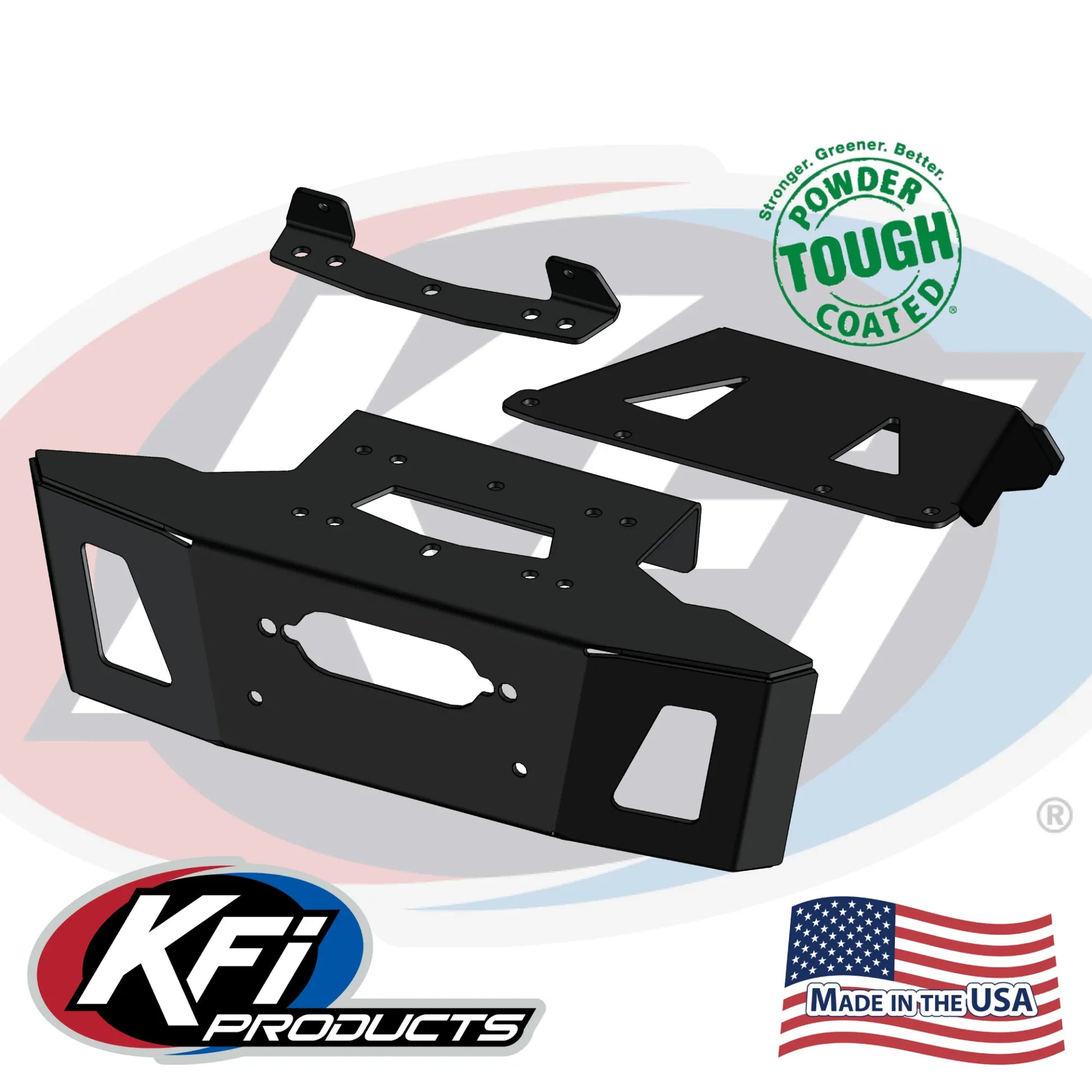

KFI 2024 Polaris RZR XP 1000/ 4 Winch Mount - 102100

Mount Designed to work with the following Winches:

KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
KFI: AM-25 / AM-35 / AS-25 / AS-35
KFI: AS-50x / AS-50wx
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
WARN: VRX 45 / VRX 45-S
WARN: AXON 35 / 35-S / 45RC (Requires Plastic Trimming)
WARN: AXON 45 / 45-S / 55 / 55-S (Requires Plastic Trimming)
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: RT40 / XT40
WARN: Vantage 2000-3000lbs / ProVantage 2500-3500lbs
WARN: Vantage 4000lbs / ProVantage 4500lbs (Will use WIDE fairlead that comes with your winch.)
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500
BADLAND: 2-Hole Winches (Click Here for Details)
BADLAND: Standard Winches (Click Here for Details)
BADLAND: WIDE Winches (Click Here for Details)
BADLAND: APEX 5500 (Short and Long Drum)
CHAMPION: 2-Hole Winches (Click Here for Details)
CHAMPION: ATV 4-Hole Winches (Click Here for Details)
CHAMPION: UTV 4-Hole Winches (Click Here for Details)
CHAMPION: WIDE Winches (Click Here for Details)
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
KEEPER CORP. TRAKKER: KT2000
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
SMITTYBILT: XRC 2.0
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
All with 3.00" x 4.875" Bolt Pattern mount-up
All with 3.00" x 6.600" Bolt Pattern mount-up
Traveller: 1078311
Traveller: 1078088 / 1078302
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
Possibly many others with the below standard mounting patterns, call to confirm.
     - 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
     - 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
     - 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
QUADBOSS: RP25 / RP35

Specifications:

100% MADE IN USA
Constructed of 10ga Grade 50 steel
Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
Powder coated black for supreme durability
Very easy to install
Complete installation instructions included
Satisfaction guaranteed
Roller fairlead and winch not included

Applications:

Polaris RZR
 RZR XP 1000 (Sport/Premium/Ultimate) 20-25
 RZR XP 4 1000** (Sport/Premium/Ultimate) 20-25**

** = Requires the purchase of #UTV-WEK (wire extension kit) Due to location of the battery on the machine.
