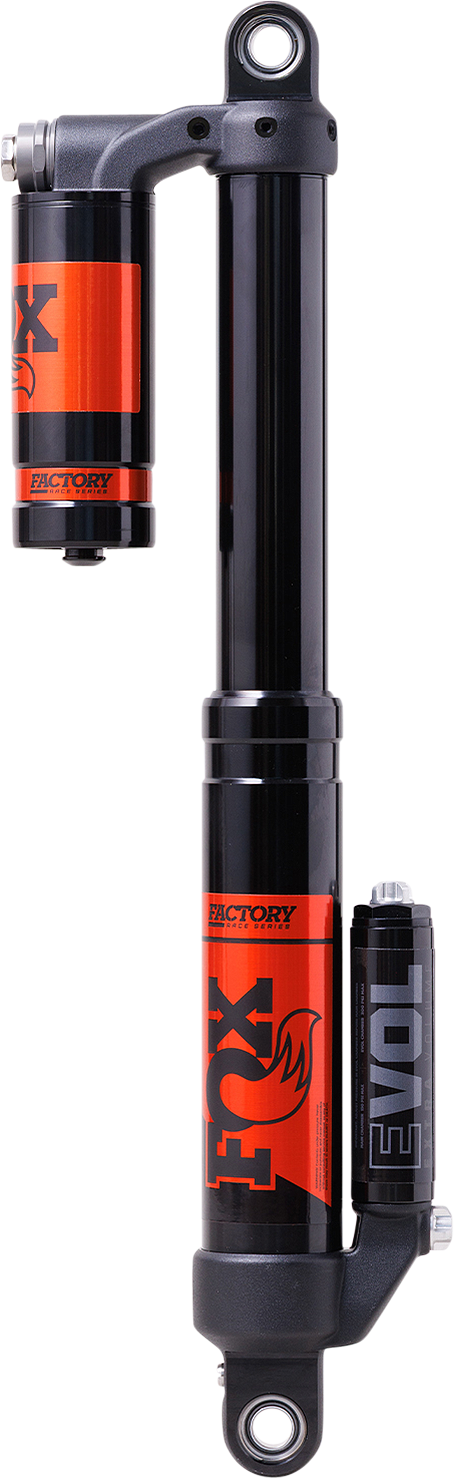

Fox Float 3 Evol Rc2 Shocks Kit Front - Black - 535-9433

Fox Float 3 Evol Rc2 Shocks Kit Front - Black - 535-9433

Float 3 Evol Rc2 Shocks Kit Front - Black

Features:

• ATV Type Sport, Race
• Spring Air
• 4.4 lbs @ 17.6”
• External rebound adjustment allows you to tune the rate the shock returns after compression in order to optimize control in all conditions
• New high-flow, high- and low-speed compression adjuster offers an increased adjuster range
• Chrome-silicon negative spring offers improved stutter bump compliance
• Fine-tune roll and turning capabilities with the infinitely adjustable EVOL air chamber: Regulate spring rate in the final portion of the stroke and control bottoming-out
• Infinitely adjustable MAIN air chamber gives a progressive spring rate and provides significant weight savings
• Race-proven velocity-sensitive damping control technology: Custom-tuned for its intended application with different piston flow designs and variable valving specifications
• Shed up to six pounds off your ATV (when replacing coil spring shocks)
• Precision manufactured damping pistons for maximized damping consistency and flow characteristics
• Aerospace-grade PTFE-lined spherical bearings to maximize durability
• Anodized Internal Floating Piston (IFP) and bearing housing to prevent oil contamination and to boost seal durability and lifespan
• 6061-T6 aluminum piggyback body caps, bodies, air sleeves and reservoirs
• Fully re-buildable and serviceable
• Genuine Kashima coat’s distinctive gold color backed by its buttery-smooth, high performance attributes — exceptionally smooth feel and extreme durability
• Samurai Sealing System specifically designed from a special low-temperature, highly durable material that scrapes away dirt, mud and debris while keeping the seals lubricated for minimal friction
• Ultra-lightweight

This Part Fits:

Year	Make	Model	Submodel	Notes
2004	Honda	TRX450R
2005	Honda	TRX450R
2006	Honda	TRX450R
2007	Honda	TRX450R
2008	Honda	TRX450R
2009	Honda	TRX450R
2009	Yamaha	YFZ450R
2010	Yamaha	YFZ450R
2011	Yamaha	YFZ450R
2012	Yamaha	YFZ450R
2013	Yamaha	YFZ450R
2014	Yamaha	YFZ450R
2015	Yamaha	YFZ450R
2016	Yamaha	YFZ450R
2017	Yamaha	YFZ450R
2018	Yamaha	YFZ450R
2009	Yamaha	YFZ450R SE
2010	Yamaha	YFZ450R SE
2011	Yamaha	YFZ450R SE
2012	Yamaha	YFZ450R SE
2013	Yamaha	YFZ450R SE
2014	Yamaha	YFZ450R SE
2015	Yamaha	YFZ450R SE
2016	Yamaha	YFZ450R SE
2017	Yamaha	YFZ450R SE
2018	Yamaha	YFZ450R SE
