DIAG4BIKE Parallel Diagnostic System 3x18 Pin Adapter - 867-02029
DIAG4BIKE Parallel Diagnostic System 3x18 Pin Adapter - 867-02029
SKU:KMPZ_867-02029
Couldn't load pickup availability

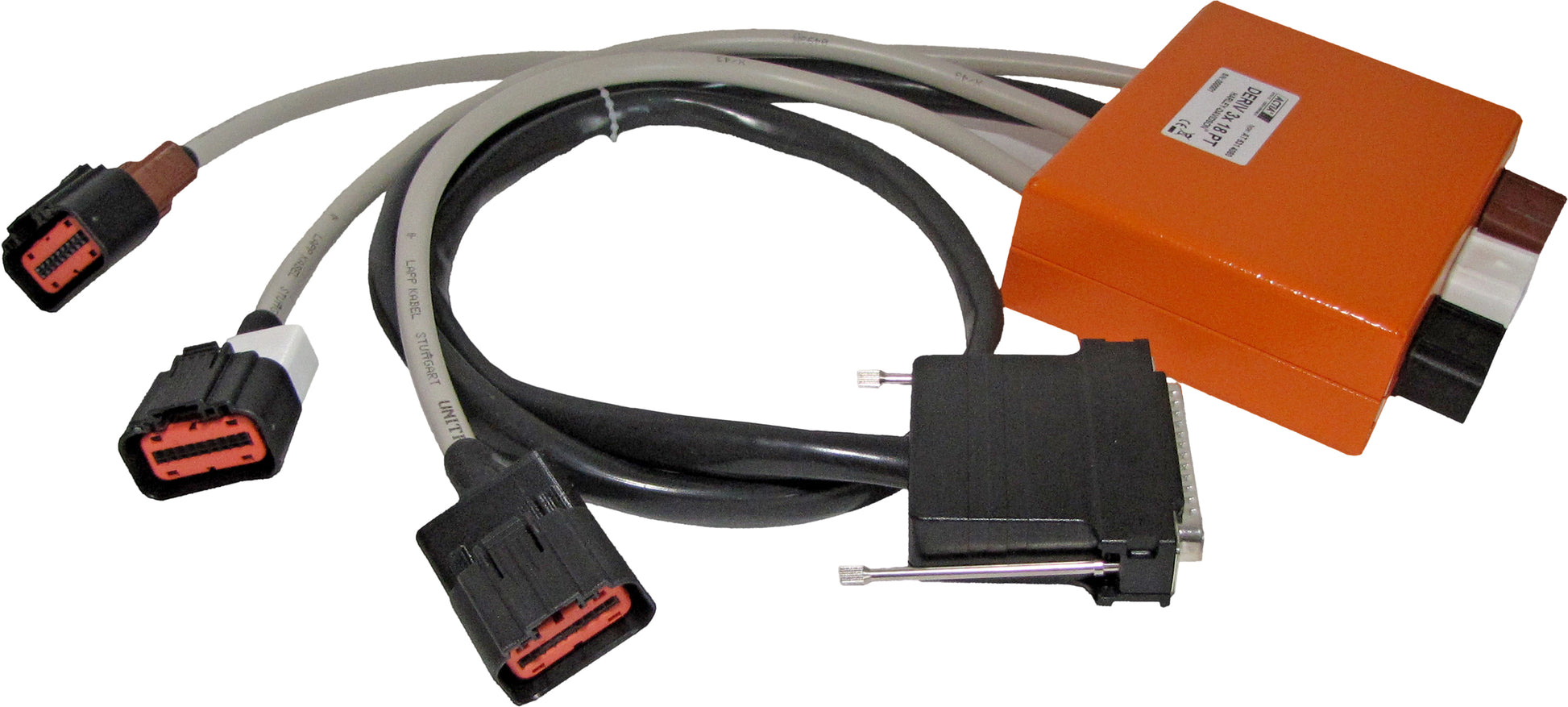

Parallel Diagnostic System 3x18 Pin Adapter
Parallel diagnostics are designed for measuring input and output signals from the electronic fuel injection module (EFI) and other modules. Measurements can be made on running engines. The system consists of a wiring harness adapter and breakout box. The breakout box is inserted between EFI module and motorcycle´s wiring harness so that the system continues to function as normal. Monitoring points for all connector pins of the EFI module are clearly arranged on the breakout box. It is possible to measure signals and waveforms from all systems and actuators. Disconnecting the ECU from the breakout box allows quick and reliable check of the integrity of the wiring harness in respect to continuity, and leakage currents.
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2018 | Harley Davidson | FLDE Softail Deluxe | ||
| 2019 | Harley Davidson | FLDE Softail Deluxe | ||
| 2018 | Harley Davidson | FLFB Softail Fat Boy | ||
| 2019 | Harley Davidson | FLFB Softail Fat Boy | ||
| 2018 | Harley Davidson | FLFBS Softail Fat Boy 114 | ||
| 2019 | Harley Davidson | FLFBS Softail Fat Boy 114 | ||
| 2018 | Harley Davidson | FLHC Softail Heritage Classic | ||
| 2019 | Harley Davidson | FLHC Softail Heritage Classic | ||
| 2018 | Harley Davidson | FLHCS Softail Heritage Classic 114 | ||
| 2019 | Harley Davidson | FLHCS Softail Heritage Classic 114 | ||
| 2018 | Harley Davidson | FLSB Softail Sport Glide | ||
| 2019 | Harley Davidson | FLSB Softail Sport Glide | ||
| 2018 | Harley Davidson | FLSL Softail Slim | ||
| 2019 | Harley Davidson | FLSL Softail Slim | ||
| 2018 | Harley Davidson | FXBB Softail Street Bob | ||
| 2019 | Harley Davidson | FXBB Softail Street Bob | ||
| 2018 | Harley Davidson | FXBR Softail Breakout | ||
| 2019 | Harley Davidson | FXBR Softail Breakout | ||
| 2018 | Harley Davidson | FXBRS Softail Breakout 114 | ||
| 2019 | Harley Davidson | FXBRS Softail Breakout 114 | ||
| 2019 | Harley Davidson | FXDR Softail Power Cruiser | ||
| 2018 | Harley Davidson | FXFB Softail Fat Bob | ||
| 2019 | Harley Davidson | FXFB Softail Fat Bob | ||
| 2018 | Harley Davidson | FXFBS Softail Fat Bob 114 | ||
| 2019 | Harley Davidson | FXFBS Softail Fat Bob 114 | ||
| 2018 | Harley Davidson | FXLR Softail Low Rider | ||
| 2019 | Harley Davidson | FXLR Softail Low Rider |
