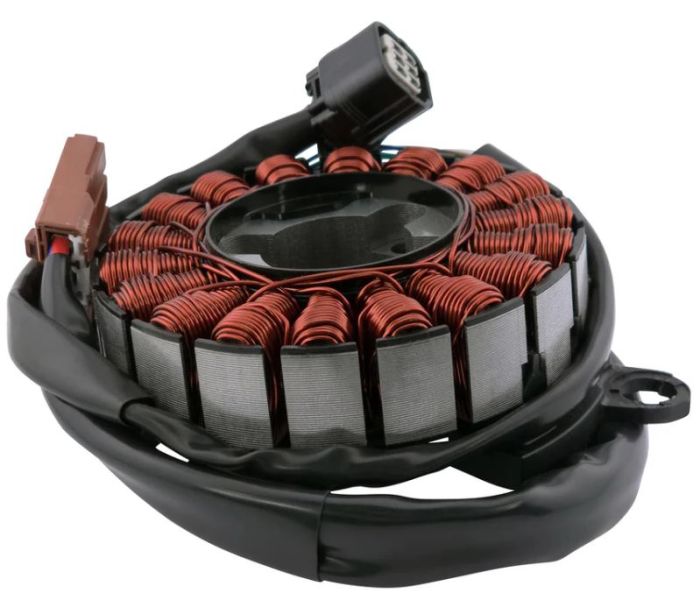

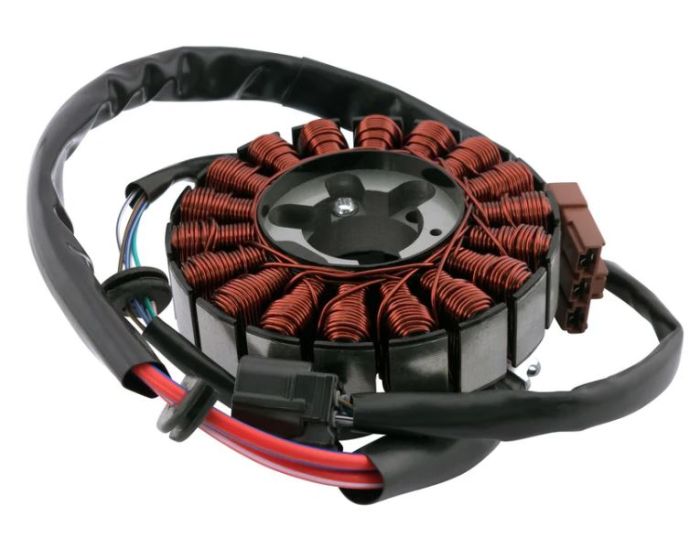

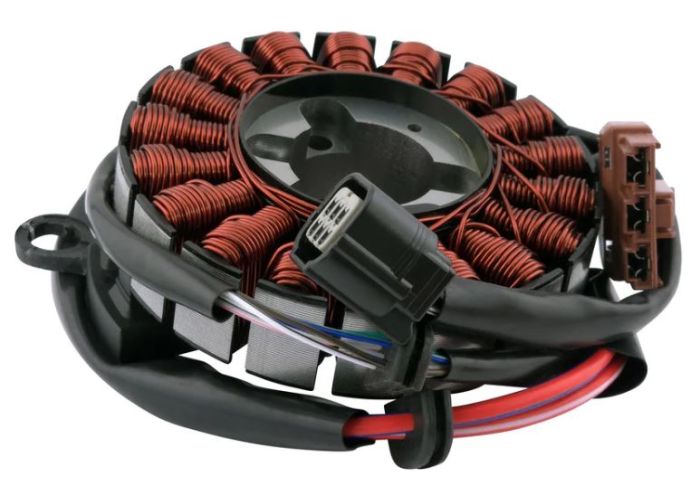

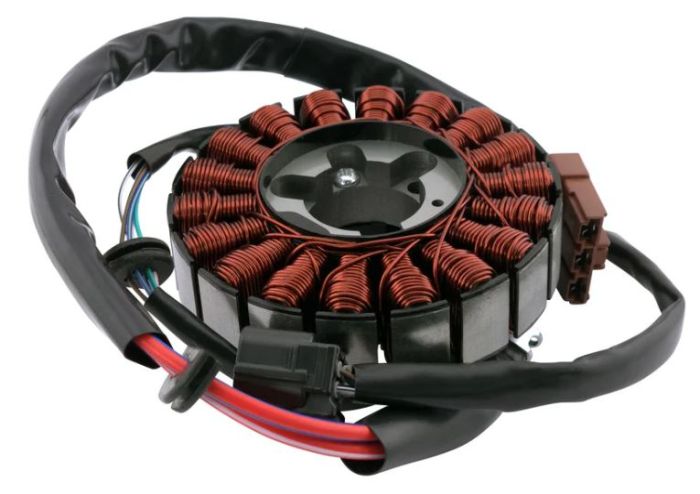

Brand new aftermarket generator statorDirect replacement to your original unitPlug-and-play, direct fit, easy installationHighest grade of lamination materialsHighest grade of copper winding, resistant to 200 degrees CelsiusCrank position sensor includedConnectors includedRubber grommet includedAll products shipped are testedAll item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.Dimensions:Interior diameter: 33 mmExterior diameter: 108 mmThickness: 21 mmLength of wires stator to grommet: 90 mmLength of wires grommet to plug: 420 mmOther specifications:Number of wires: 9Number of plugs: 2Number of pins: 9Number of poles: 18Wire to wire resistance:Alternator: Between Red/Yellow, Red/Blue and Red/White = 0.6 ohms +/-20%Alternator: Red/Yellow, Red/Blue and Red/White to ground = O.LBefore installing your new generator statorCheck the AC output of the statorReplace any burned or corroded connectors on stator and regulator rectifierCheck and repair any melted wiringUse hi-temp dielectric grease on all connectorsOur stator might have a different wire color code than your original part.All the wires are installed in the correct order; please do not change any of the wiring configurations.This stator is designed as a direct plug-in replacement and should be used as such.When bolting stator in, always use locking compound.If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".Warning:Risk of electric shock. Disconnect the battery before servicing.Ensure proper installation by a qualified technician to avoid malfunction.Vehicle Fitments2024 Honda SH 125i2023 Honda SH 125i2022 Honda SH 125i2021 Honda SH 125i2020 Honda SH 125i2019 Honda SH 125i2018 Honda SH 125i2017 Honda SH 125i2016 Honda SH 125i2015 Honda SH 125i2014 Honda SH 125i2013 Honda SH 125i
